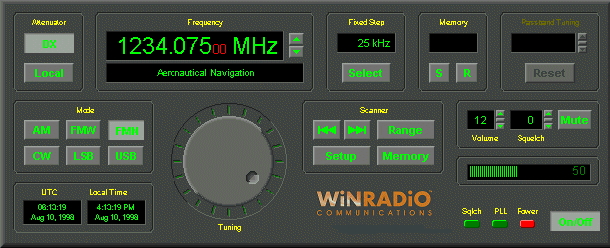

The WR-3000i-DSP software contains numerous advanced features, many tuning and scanning options, virtually unlimited memories and a rich on-line help facility.
(Smaller than actual size.)
The Spectrum Scope with Visitune includes various calculated spectra display.
The scanned spectra can be stored and printed for later reference.
The Spectrum Scope has a number of options allowing the user to customize the spectrum display.
Several different types of spectra can be displayed, including differential spectra which are particularly suitable for monitoring of activity on a particular channel or in a particular band.
The multi-channel Signal Strength Recorder is useful for signal level observation and channel occupancy measurements. Signal level graphs can be stored and printed out.
The multi-featured scanner facility can automatically record and log intercepted signals.
The inbuilt DSP recorder can store recorded audio on the hard disk. This recording facility does not rely on the PC sound card - as many as eight WR-3000i-DSP receivers can record audio signals simultaneously into eight different files.
The in-built Task Manager makes it possible to program the receiver to perform many tasks automatically and make decisions based on user-specified conditions. These conditions include time and date, signal transitions, and events generated by the Digital Signal Processor (which can be user-specified). The performed tasks include setting of the receiver parameters, taking logs, recording, taking snapshots of spectra or signal strength graphs in a predefined range, commencing scanning or recording, starting a DSP program or alerting the operator.
An advanced and user-friendly Log Editor contains many advanced features making it possible to manipulate the logged frequencies easily and effortlessly. It also allows direct tuning of the receiver to the logged frequencies.
The 3000 Series software contains many other useful features which assist the integration of the receivers in professional surveillance systems. One such useful feature is external antenna control which can automtically switch the antenna to suit the received frequency range.
The DSP Signal Conditioner is supplied as standard part of the 3000-Series software, to provide a useful example of a DSP application.
The Signal Conditioner contains four basic functions: a user-tunable bandpass filter, noise reduction, auto-notch and marker tone.
Real-time FFT display shows the received signal (either before or after filtering). The bandpass filter whose idealized characteristics are shown above the real-time spectrum can be user-tuned by dragging the edges of the displayed passband (or the entire passband) using the mouse.
Extensive support is provided for software developers wishing to write their own applications code for this WiNRADiO receiver.
A DSP application development kit is also available to assist the development of specialized DSP applications.
Detailed technical specifications
Digital Suite option
Database Manager option
Comparative summary of WiNRADiO receivers
Third party developer's information
Note: This receiver has been discontinued and is superseded by WR-3100i-DSP.
