S-meter Calibrator for WR-G313 Receiver Series

This WiNRADiO S-meter Calibrator is suited for an advanced user who seeks to improve the already excellent S-meter accuracy of G313 series WiNRADiO receivers by individual calibration. Using this S-meter Calibrator, the signal level reading of the S-meter can be improved to approximately 0.5 dB accuracy. The S-meter Calibrator makes it possible to create calibration tables for as many frequency points as required, and interpolate between these tables to arrive at absolute values in dBm, microvolts or S-units, for any arbitrary frequency the G313 receiver is tuned to. The program requires the use of a synthesized signal generator to generate calibration levels in the frequency range of interest.

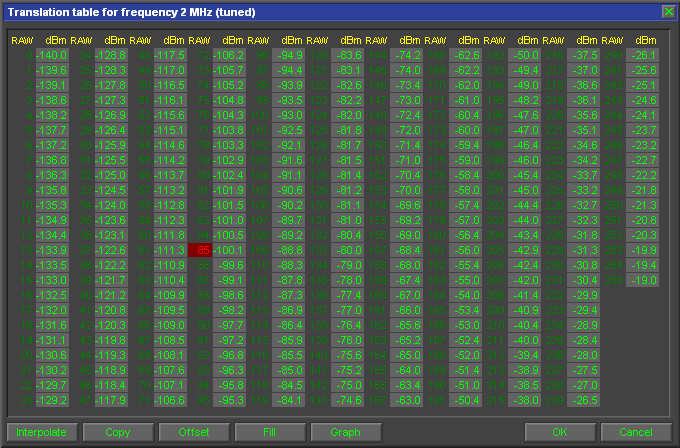

The S-meter Calibrator includes commands to create, edit and manipulate the calibration tables, interpolate between individual calibration points within a particular table as well as between entire tables, view calibration graphs for individual frequencies and other useful facilities.

The S-meter Calibrator includes commands to create, edit and manipulate the calibration tables, interpolate between individual calibration points within a particular table as well as between entire tables, view calibration graphs for individual frequencies and other useful facilities.

The S-meter Calibrator is provided as an "as is" complimentary tool for WiNRADiO receiver users. The calibration procedures should not be attempted by persons without a deeper understanding of the underlying concepts, as WiNRADiO can only provide a limited technical support for this application, and can accept no liability for any problems arising from its use.

Download S-meter Calibrator for G313 Series Receivers

	Version	Date Released	File Size	Download
	1.09	4 Sep 2007	554,152
