WA-811 Antenna Distribution System |
The antenna inputs are configured as follows: |
|
The frequency boundaries can be customized to meet individual customer specifications. For each antenna input, an 18dB switchable attenuator and a band-stop filter for broadcast frequencies can be used. The attenuators and filters can be engaged for each antenna independently, either directly via the front panel or remotely via the serial port. |
The unit also contains the following user-switchable filters, in addition to the fixed band preselector filters. These are used to reject broadcast frequencies:
|
The unit also contains power supplies for external antenna preamplifiers (+12V is applied to the antenna leads). These voltages are normally switched off by default, and can be selectively enabled/disabled in remote operation mode. |
Front View
The front panel of the WA-811 unit is divided into a keypad area and the status display. The keypad is used to enter the matrix configuration (which receiver is connected to which antenna), to switch on/off the attenuators and band-stop filters, and to enable/disable remote control. |
Rear View

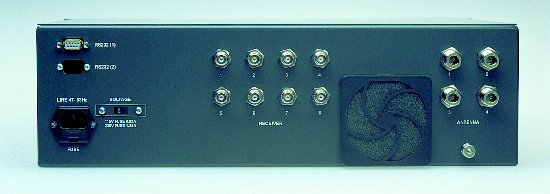

The antennas are connected using N-type connectors at the rear of the unit. The receivers are connected via BNC connectors. Connecting to the RS-232 serial port is done via a standard 9-pin connector. An optional second RS-232 port may be installed by special requirement. (This is usually used in high-reliability redundancy systems where the second RS-232 port is connected to a back-up computer equipment.) |
Remote OperationIn remote operation mode, the unit will accept commands from the host computer and continue showing the current settings on the front panel status display. The unit can be controlled and its status interrogated via the serial interface, using a set of low level commands. |
Control SoftwareFor easy control of the unit from a PC under Windows, virtual control panel software is available, and supplied as part of the package. This software has a self-explanatory graphical user interface which makes it possible for the operator to observe what is happening inside the unit:
Virtual control panel of WA-811 The status of the antenna matrix is observed in a grid of antenna inputs and receiver outputs, and is easily changed by clicking on the intersecting lines. The status of filters and attenuators is shown by highlighting of the active attenuators or filters, and changed by simply clicking on the corresponding function blocks. Note also that power for the external antenna preamplifiers can be controlled from here, by clicking on the associated power supply blocks. |
